- Wide range AC input 96-264VAC, 47~63Hz
- DC plug, more convenient to connect
- High efficiency, long service life, high reliability, high cost performance
- Operating temperature: -20 °C ~70 °C (40 °C 100% full load burn-in test, 70 °C 70% full load burn-in test)
- Altitude: 5000m
- 100% full load burn-in test
- Suitable for extreme environment

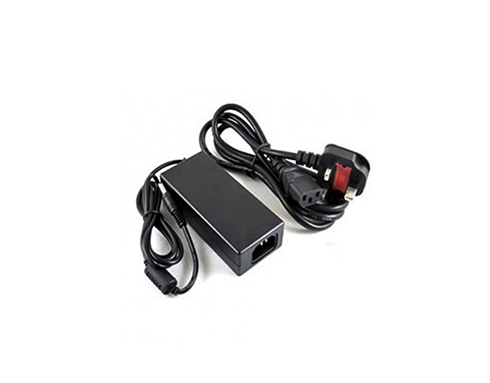

| Model | GT5AMP | |
| OUTPUT | DC VOLTAGE | 12V |
| RATED CURRENT | 5000mA | |
| CURRENT RANGE | 0~5000mA | |
| RIPPLE & NOISE (-30~70°C Note2) | Peak to peak voltage(Vpp) <120mV | |
|
REGULATION ACCURACY |
±10.0% | |
|
SET-UP & HOLD-UP TIME |
Ton≤1S,Td≥20mS@230V | |
| INPUT | VOLTAGE RANGE | 96~264VAC |
| FREQUENCY RANGE | 47Hz~63Hz | |
| EFFICIENCY (Typ.) | >80% | |
|
AC INPUT CURRENT (Max.) |
<2A | |
| STET-UP IMPULSE CURRENT(Typ.) | <20A@230Vac cold start | |
| ENVIRONMENT |
OPERATING TEMP.& HUM. |
-20°C ~70°C; 20%~90%RH non-condensing |
| STORAGE TEMP.&HUM. |
-30°C~85°C; 10%~95%RH C21 non-condensing |
|
|
SAFETY & EMC (Note2) |
SAFETY STANDARDS |
GB4943, IEC/EN/UL/CSA60950 |
| INSULATION RESISTANCE |
input-output, output-housing, output-housing: 500VDC/100M |
|
| ELECTROMAGNETIC INTERFERENCE | Compliance to EN61000-4; ENV50204, Grade A light industry standard | |
| OTHER | COOLING | free air convection |
