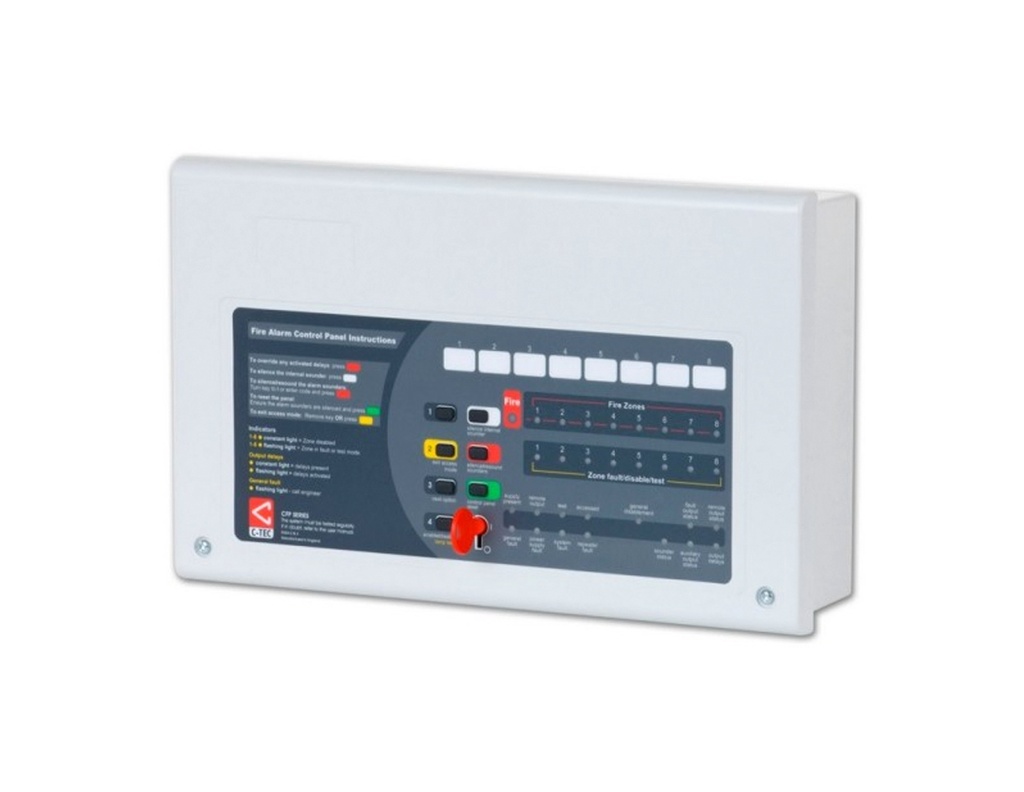

CFP702-2 - C-Tec CFP AlarmSense Bi-Wire Fire Alarm Panel | 2 zone
CFP702-2
- Intuitive user-friendly interface with colour-coded buttons and combined keypad/keyswitch entry to access level 2
- 2 AlarmSense zone circuits
- 4 conventional sounder circuits
- Integral 1.5A EN54-4/A2 compliant switch mode PSU
- Wide range of engineering functions including zone test, coincidence, zone delay and non- latching zones
- Two on-board relays (Fire and Fault)
- Two open-collector outputs (Remote and Reset)
- Class change and alert inputs
- Installer-friendly design accommodates easy first fix and straightforward maintenance
- Attractive flush or surface mountable plastic lid and enclosure - no bezel required
- Low quiescent current
- Multiple indicators
- End of line units included (one per zone)
- Ancillary system expansion connections provided for up to eight two-wire repeaters (one CFP761 network driver card required per system) and optional CFP relay boards
- Space for two x 12V 3.2Ah SLA batteries
- Third-party LPCB tested
- 380 W x 235 H x 96 D mm
