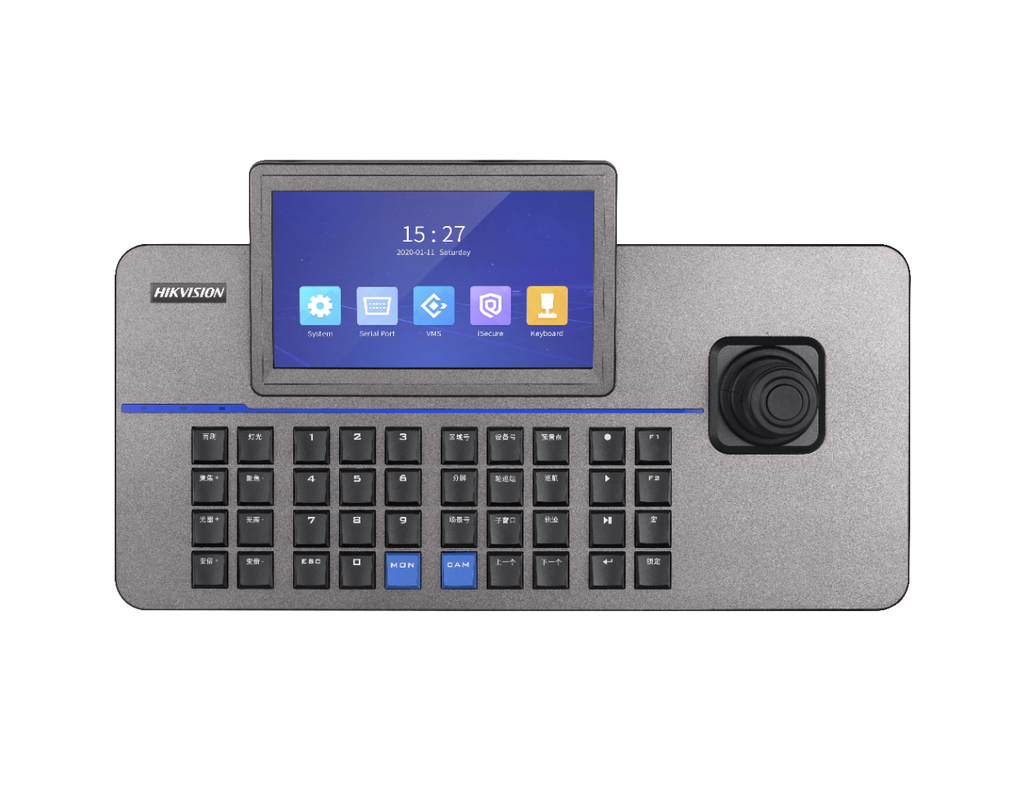

DS-1105KI - Network Keyboard
DS-1105KI
- Divide video wall into regions to manage video wall by region
- open/close window, move window, resize window, divide window, and enlarge/narrow sub-window
- Group and macro
- Preview camera live image on network keyboard touchscreen
- Quickly switch to the previous/next camera
- Optical and mechanical keyboard switches provide comfortable feelings and stable performance
- Up to 4-ch live view
- Control speed dome movement via joystick
- Play the decoder videos on video wall
- Play the video recorder videos on network keyboard touchscreen. Supports clipping and capturing during playback
- Add devices via SDK or ONVIF protocol
- HikCentral and KPS platforms access
- Support up to 32 users (1 administrator and 31 operators) and 4,000 devices
- Add/modify/delete cameras in batch
- Import/export configuration file
Model | DS-1105KI |
Local decoding |
|
Format |
H.264,H.265,MPEG4 |
Performance |
4@1080p |
Screen division |
Single screen |
Input/output |
|
Display |
7" TFT LCD at 1024 × 600 resolution |
Joystick |
4D joystick |
Audio | 1-chMIC IN, supports48 VDC phantom power supply;1-ch LINE OUT, 3.5 mm stereo plug, supportstwo-wayaudio |
Video | 1 ×HDMI Interface;1 ×VGAInterface |
USB | 1 × USB 2.0 interface |
Serial port | 1 × RS-232, 1 × RS-485 |
Network | 1 × 100M/1000M self-adaptive network interface |
General | |
System | Linux |
Dimensions (L × W × H) | 435 × 193 × 110 mm (17.1" × 7.6" × 4.3") |
Weight | 2 KG (4.4 lb) |
Working temperature | -10 °Cto +55 °C (14 °F to 131 °F) |
Working humidity | 10%to 90% |
Power supply | 12 VDC |
Consumption |
≤ 15 W |
