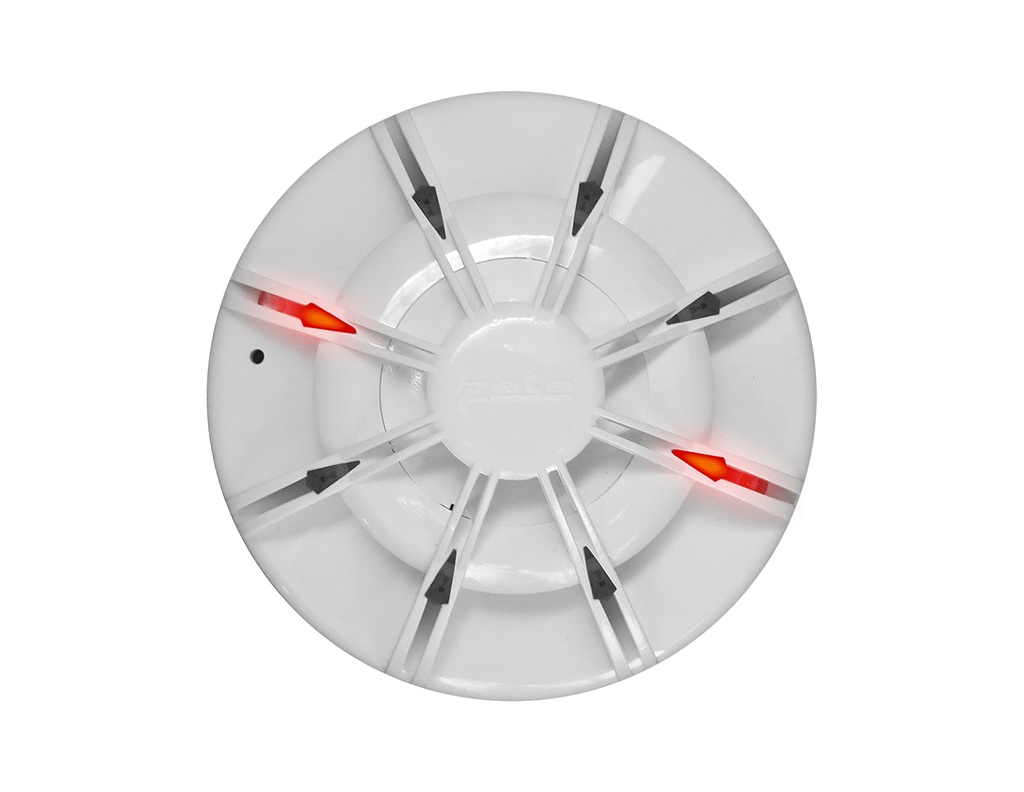

- Combined optical smoke and Class A1 heat detection for comprehensive fire protection
- Designed to meet EN54 parts 5 & 7 requirements with LPCB approval
- Pulsing infrared LED and photodiode technology for reliable smoke detection
- Fixed heat trigger at 57°C for rapid response to fast-developing fires
- 8 LEDs providing improved 360° visibility of alarm status
- Lockable to base to stop unauthorised removal
- Remote LED output capability for external indication
- Compatible with all Fyreye MKII bases
- Addressed with dip switches or hand-held programmer
- IP43 rated for protection against dust and water spray
- Wide operating temperature range from -10°C to +50°C
- 100m² coverage area per detector
- Low quiescent current of 500µA for efficient operation
- 10 second start-up time for rapid system initialisation
