HAY-PSUMULTI-10A - 10 Amp 12VDC PSU with upto 16 outputs
HAY-PSUMULTI-10A
- The MULTI-10A has 16 total outputs.
- Outputs: 1 to 4 the fuses are rated to 2.5A
- Outputs: 5 to 16 the fuses are rated to 1.1A.
- Total power output cannot exceed 10A
- Input Voltage: AC 110 – 240V Rated 3amp main fuse
- Outputs: 16 x 12VDC Outputs
- Maximum Output: 10 Amps
- Auto Reset PTC Fuse for each Output: 4 Output 2.5 Amps 12
- Output 1.1 Amps *Not exceeding 10 Amps Total Output*
- Regulated & Filtered: Yes
- Surge Protected: Yes
- Internal ON/OFF Power Switch: Yes
- Individual LED Output Indicator: Yes
- Dimensions; 24 x 20.5 x 6.5cm Weight 1.8 Kgs
- CE & RoHS Compliant: Yes
- Storage Temperature - 20 to 85C
- Operating Temperature -10 to 50C
- Operating Relative Humidity 0-90%

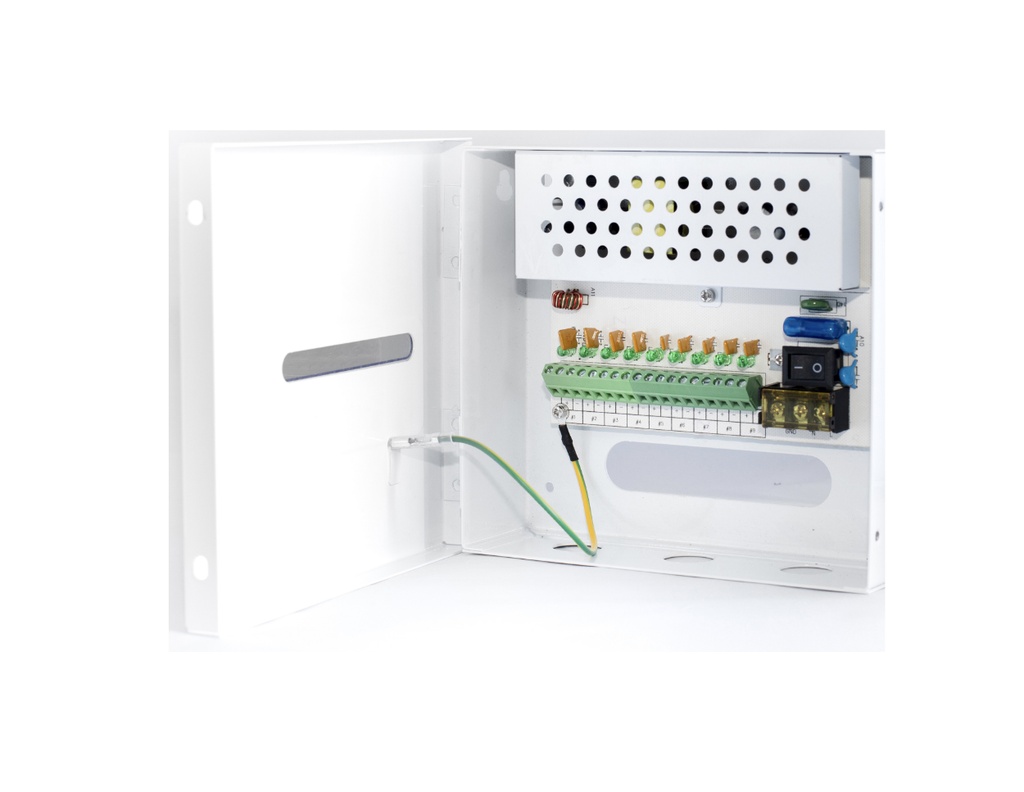

- The clear panel in the front of each unit allows engineers to see if outputs are live without opening.
