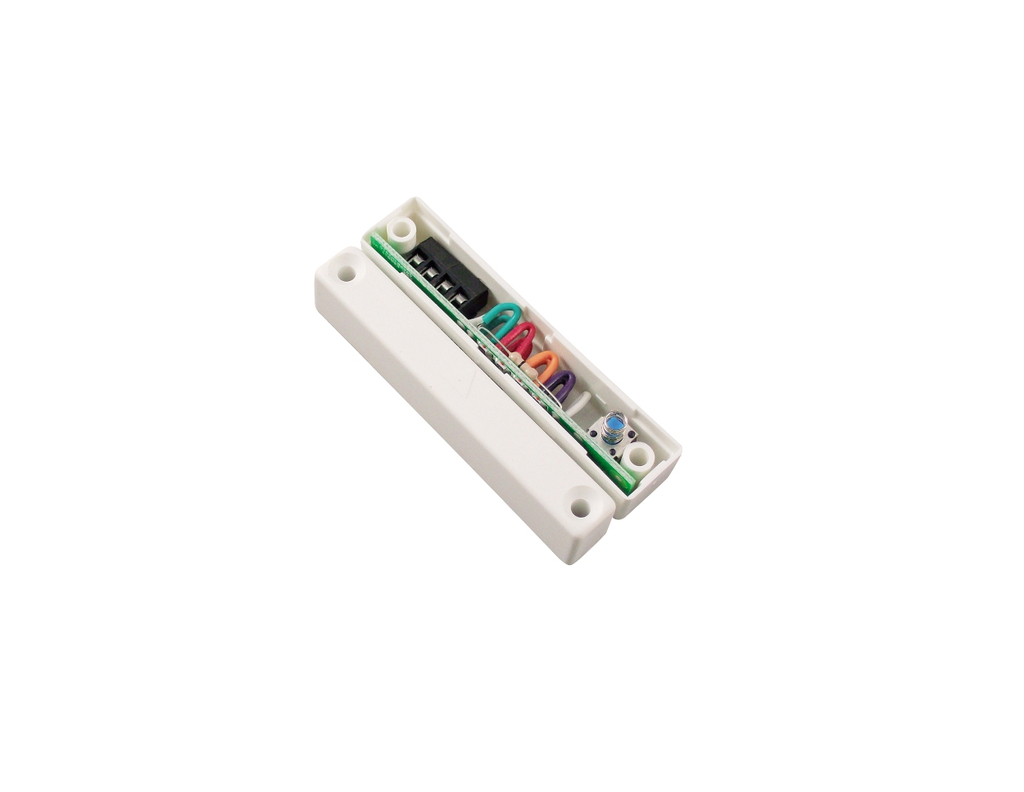

SC517/WH/MULTI/G2/EN - CQR Multi Resistored Surface Door Contact, White
SC517/WH/MULTI/G2/EN
- Microswitch tamper
- Selectable end of line resistor
- Can use own resistors
- Can be used on double door configuration / double pole
- Connections: 4 Terminals
- Reed Switches: 1
- Pull-in Gap: 25mm (X) 15mm (Y)
- Material: High Impact Polystyrene
- Contact Size mm: 65 x 13 x 13
- Magnet Size mm: 65 x 11 x 13
- Contact Form: SPST form A
- Voltage Range: 12v DC
- Switching Current: 500mA @ 12Vdc
- Contact Material: Rhodium
- Temperature Range: -15° C to +40° C
- Colours: White
- Standards: EN50131-2-6 Grade 2 / Class 2
