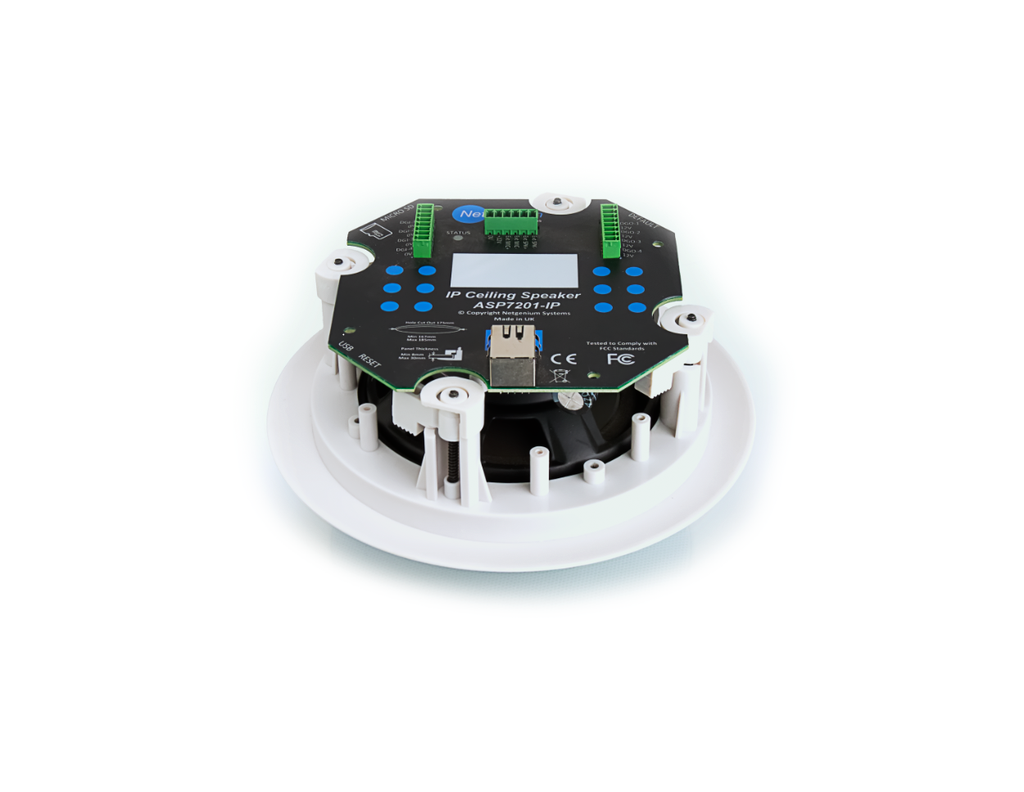

ASP7201-IP Ceiling Speaker
ASP7201-IP
The ASP7201-IP PoE Ceiling Speaker is the perfect speaker for applications such as public address, music streaming, pre-recorded announcements and scheduled announcements.
Installed flush into a ceiling or ceiling or wall mount using the ASP7201-SMB Surface Mount Box, the speaker can be easily installed in school corridors and classrooms, reception areas, office meeting rooms, shop floors and waiting room type environments.
Model No
ASP7201-IP
Connectivity
1 No. 10/100 Base TX Ethernet RJ45
Supported Codecs
G711 uLaw, G711 ALaw, PCM
Wav 11.025 Khz, Wav 22.05 Khz, Wav 44.1 Khz, Wav 48 Khz
Onboard I/O
No 4 Flex Inputs (Requires Digital 0v contact)
No 4 Flex Outputs (12V switched –ve)
Flex I/O can be used for local announcements, IP events and PolicyServer control
Power Supply
Power over Ethernet IEEE820.3af
Mechanical
Case Diameter: 203mm
Net Weight: 700g
