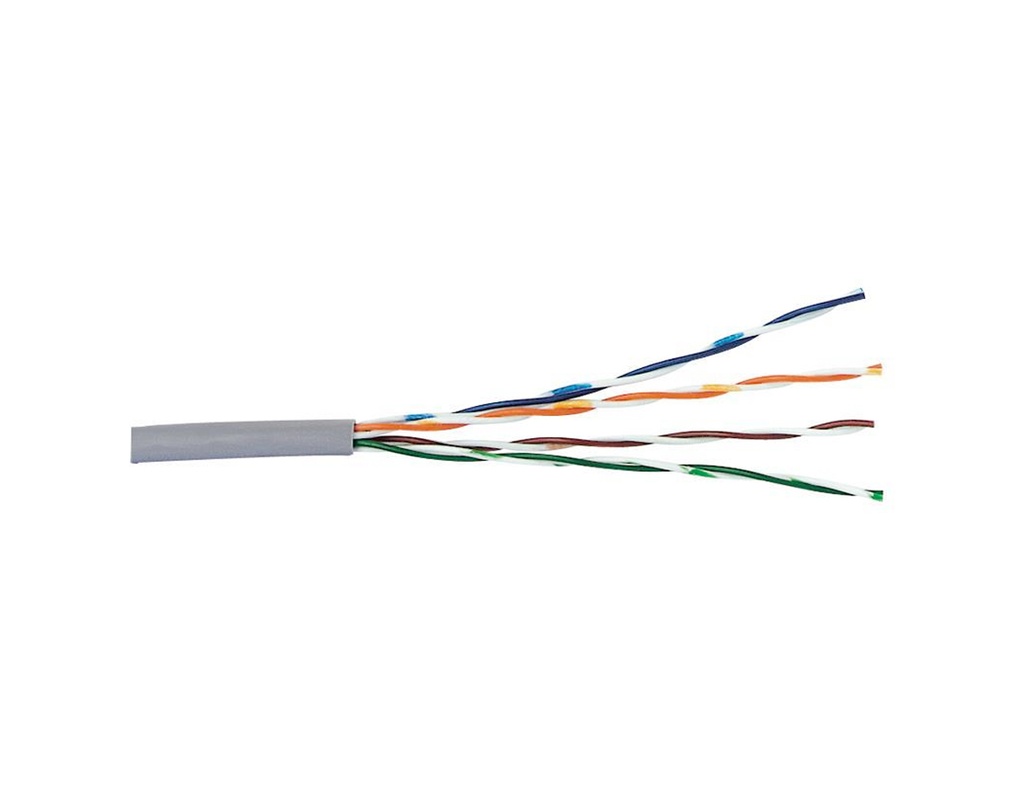

GTCAT5 - 5e UTP PVC Grey
GTCAT5
- Material: Solid Bare Copper
- Length: 305m
- Conductor Dia. (mm): 24 AWG 0.57 ±0.005mm
- Insulation: HDPE
- External Dia.: 5.1 mm ±0.8 mm
- Material: PVC
- Colour: Grey RAL7004
- Rip Cord: Yes
| Model | GTCAT5 - 5e UTP PVC Grey |
| Material | Solid Bare Copper |
| Conductor Dia. (mm) | 24 AWG 0.50 ±0.005mm |
| Insulation | HDPE |
| External Dia. | 5.1mm ±0.8 mm |
| Length | 305m |
| Colour | Grey RAL7004 |
| Rip Cord | Yes |
| Core Colours | Blue/White/Blue, Orange/White/Orange, Green/White/Green, Brown/White/Brown |
| Impedance(Ω) : (1-100MHz) | 100±15Ω |
| DC Loop Resistance | <19.0Ω/100m |
| Resistance Unbalance | <2% |
| Capacitance Unbalance To Earth | <1600pF/km |
| Nominal Velocity Of Propagation | 67% |
| Propagation Delay (Nominal) | <535ns/100m |
| Conductor/Conductor | 1000V |
| Insulation Resistance (500V D.C) | <5000MΩ.km |
| Coupling Attenuation | 40dB |
