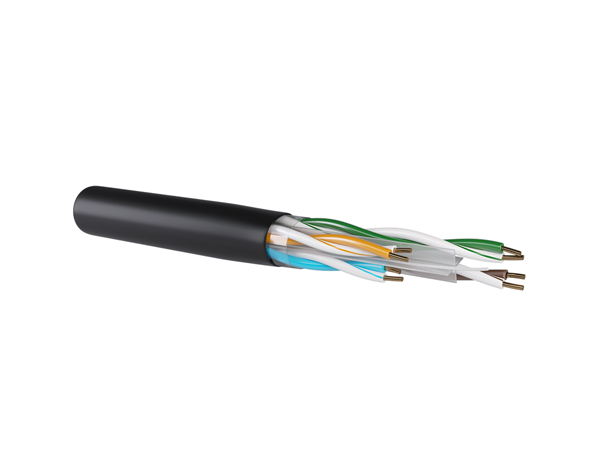

GTCAT6OUT - CAT6 UTP/PE
GTCAT6OUT
- Material: Solid Bare Copper
- Length: 305m
- Conductor Dia. (mm): 0.54mm+/- 0.005mm
- Insulation Dia.: 0.98mm (nominal)
- Twisting: 2 cores to the pair
-
Cable lay up: 4 pairs to the core, HDPE Cross
| Model | GTCAT6OUT |
| Material | Solid Bare Copper |
| Conductor Dia. (mm) | 0.54mm+/- 0.005mm |
| Insulation Dia. | 0.98mm (nominal) |
| Twisting | 2 cores to the pair |
| Cable lay up | 4 pairs to the core, HDPE Cross |
| Core Colours | Blue/White/Blue, Orange/White/Orange, Green/White/Green, Brown/White/Brown |
| Length | 305m |
| Thickness | Thickness:≥0.50mm |
| Diameter | 6.1mm+/-0.3mm(nominal) |
| Jacket Colour | Black RAL9005 |
| Resistance unbalance | 2.50% |
| Propagation delay | £ 498 ns/100 m |
| Delay skew | £ 44 ns/100 m |
| Mutual Capacitance | 56 pF/km |
| Capacitance unbalance (pair to ground) | 330 pF/km |
| Minimum bending radius | 8 x D |
| Maximum pulling force | 90 N |
| Temperature range |
Operation -40°C up to + 80°C Installation -10°C up to + 70°C |
