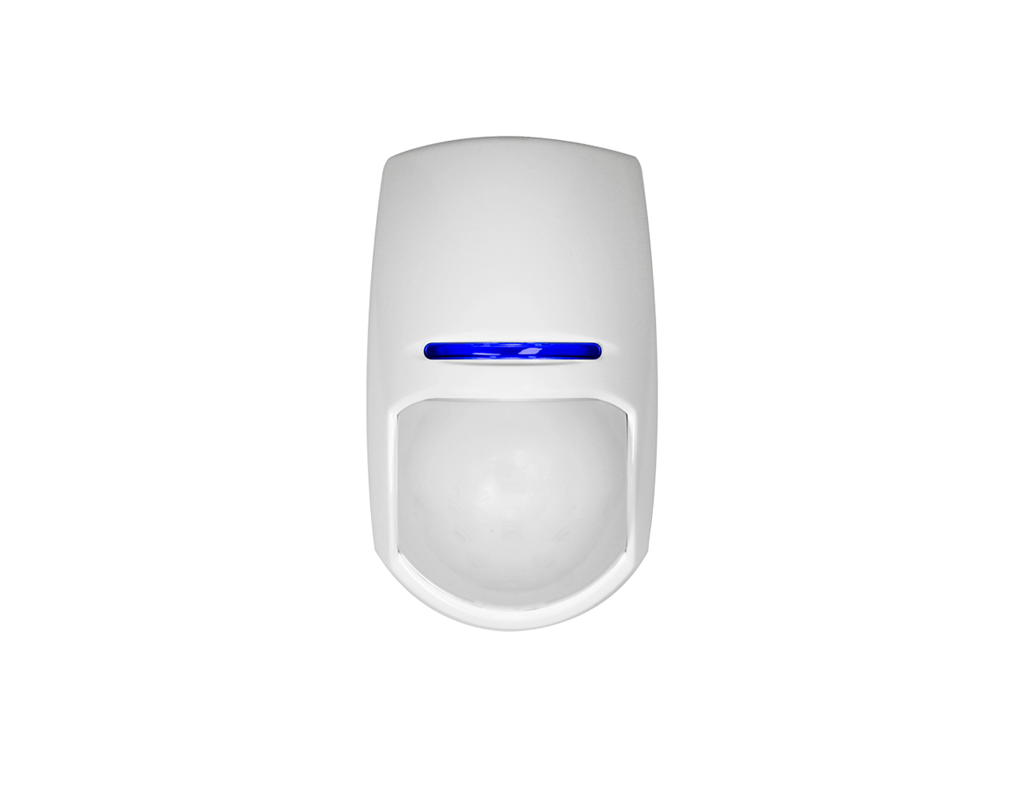

PY-KX15DT3 - 15m Dual Tech Alarm PIR Detector
PY-KX15DT3
- Dual technology detector using PIR and Microwave sensors
- Selectable EOL (End Of Line) resistors
- AND/OR technology
- Patented Independent Floating Thresholds (IFT)
- Blue Wave Technology
- Auto sensitivity feature and digital temperature compensation
- Triple LED indication
- Sealed optics
- Anticloaking Technology
- Creep Zone Protection
- White Light Filter
- 3D Lens
- Tamper proof brackets included
- Environmental Class II, Grade 2
- Complies with EN50131-1Approx
- Specifications
- Range: 15m
- Operating Voltage: 9-16 VDC
- Volumetric Coverage
- Tamper: Front and Rear
- Frequency: 10.595GHz
- Detection Speed: 0.3-3.0 m/s
- Coverage Angle: 85 Degrees
- Detection Zones: 74
- Detection Planes: 7
- Dimensions: 117 x 69 x 50mm
- Weight: 125g
