  2. SR5016D - Serage 16 CH, 5 in 1 Hybrid HD DVR

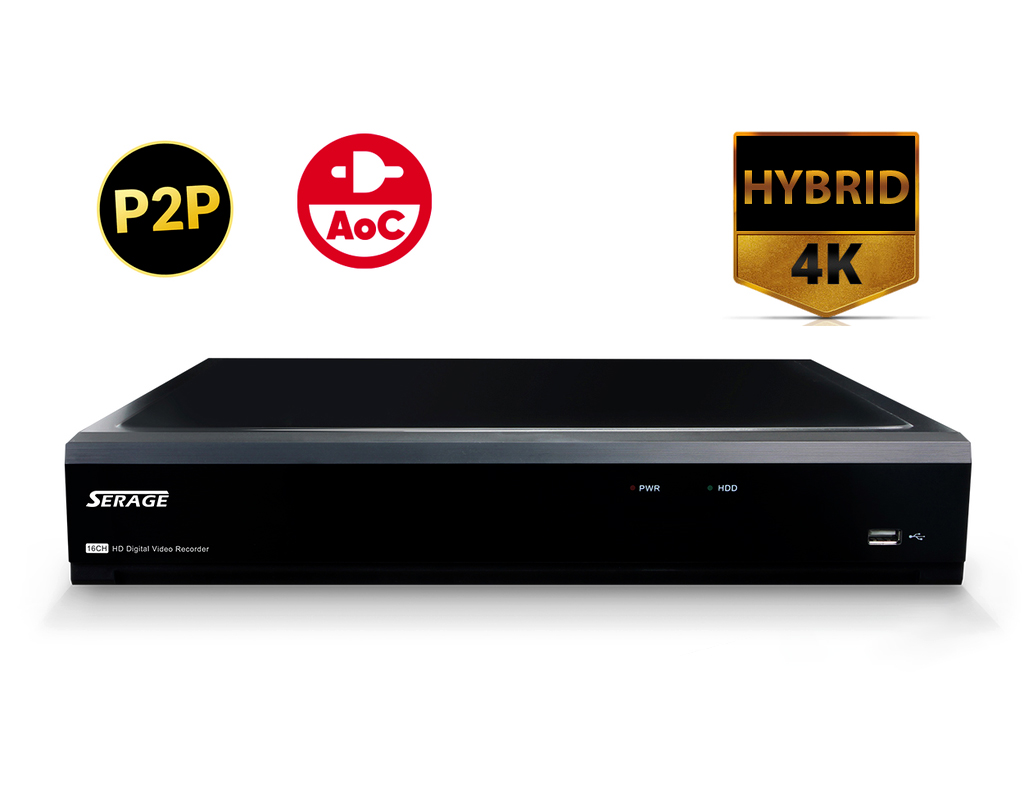

SR5016D - Serage 16 CH, 5 in 1 Hybrid HD DVR

SR5016D

https://www.gtecsecurity.co.uk/web/image/product.template/13169/image_1920?unique=ac5445a
  • HDD

This combination does not exist.

Contact Us

Terms and Conditions

  • 16CH Universal
  • Recording at up to 4K, 7 fps/ch
  • Support TVI/AHD/CVI/Analogue + 8 IP - Total of 24 Cameras
  • 16ch synchronous playback
  • 16 Audio input, 1 output - 5-16 ch audio input should use additional audio in cable connected, and it is in the accessory box
  • 1 x USB 3.0 - 1 x USB 2.0 (for mouse and backup/upgrade)
  •  HDMI, VGA & BNC CVBS output
  • Web-based management /CMS
  • 16 Alarm input / 1 output
  • Support IOS & Android, Mobile/Tablets Free Application
  • x 2 HDD up to 16TB
  • Analog :8MP/5MP/4MP/3MP/1080P/720P/960H
  • IP :4MP/3MP1080P/720P
Model SR5016D
Video Compression H.265/H.264
Video System NTSC/PAL
Operation System Linux (Embedded)
Analog Video-Input /Output 16CH Inputs / VGA and HDMI Output
IP Video Input 8CH (Only IP up to 24ch)
Composite Video Input Up to 24ch (Analog video + IP video)
Audio Input /Output 16CH Inputs /1CH Output (RCA) - 5-16 ch audio input should use additional audio in cable connected, and it is in the accessory box
Display Reslution

4K Model:
Analog : 8MP（15fps）
5MP（20fps）
4MP/3MP/1080P/720P/960H （30fps）
IP : 4MP/3MP1080P/720P（pending）
5MP Model:
Analog :5MP（20fps）
4MP/3MP(30fps)
1080P/720P/960H
IP :4MP/3MP1080P/720P（pending）

TVI up to 5MP
AHD up to 5MP
CVI up to 4MP
CVBS up to 960H
SERAGE IPC up to 4K
Feature 1/4/6/8/9/10/13/14/16/S.E.Q.
Record Resolution Analog :8MP/5MP/4MP/3MP/1080P/720P/960H
Speed 4K Model:
Analog :8MP:7fps(each ch)
5MP:10fps(each ch)
4MP:15fps(each ch)
3MP:17fps(each ch)
1080P:PAL:25fps(each ch)/NTSC:30fps(each ch)
IP : PAL:25fps(each ch)/NTSC: 30fps(each ch)
5MP Model:
Analog :5MP:13fps(each ch)
4MP:16fps(each ch)
3MP:20fps(each ch)
1080P:PAL:25fps(each ch)/NTSC:30fps(each ch)
IP : PAL:25fps(each ch)/NTSC: 30fps(each ch)
IP-Recording Bandwidth (Maximum Input Bandwidth) 64Mbps
Maximum Output Brandwidth 128Mbps
Maximum Decode Performance 4K Model:
8MP: 56fps （Max 8CH playback）
5MP: 160ps （Max 16CH playback）
4MP: 240fps
3MP: 272fps
1080P: 480fps
5MP Model: （Max 16CH playback）
5MP: 208fps
4MP: 256fps
3MP: 320fps
1080P: 480fps
Recording Mode Continuous/Manual/Motion detect
Synchronous Playback 16CH
Network Type LAN, DHCP and DDNS
HDD Interface 2SATA HDDs, up to 16TB
Multiplex Operation Live display, record, playback, backup and network
USB 1xUSB 3.0 1xUSB 2.0 (For mouse and backup/upgrade)
Sensor & Alarm I/O 16 Inputs /1 Output
PTZ Control Yes (RS485)
Mobile Surveillance Support Mobile Phones based on iPhone and Android operation system
HDMI, VGA &BNC (Spot) 1024*768,1280*720,1280*1024,1440*900,1920*1080(1080P),2560*1440(2K),3840*2160(4K)
Power Supply DC 12V/5A
Dimension (WxDxH) 378x340x50mm
Working Temperature -10°C~+55°C
Working Humidity 10%~90%
