  3. SRSP5M/33 - Serage 5mp Speed Dome Camera

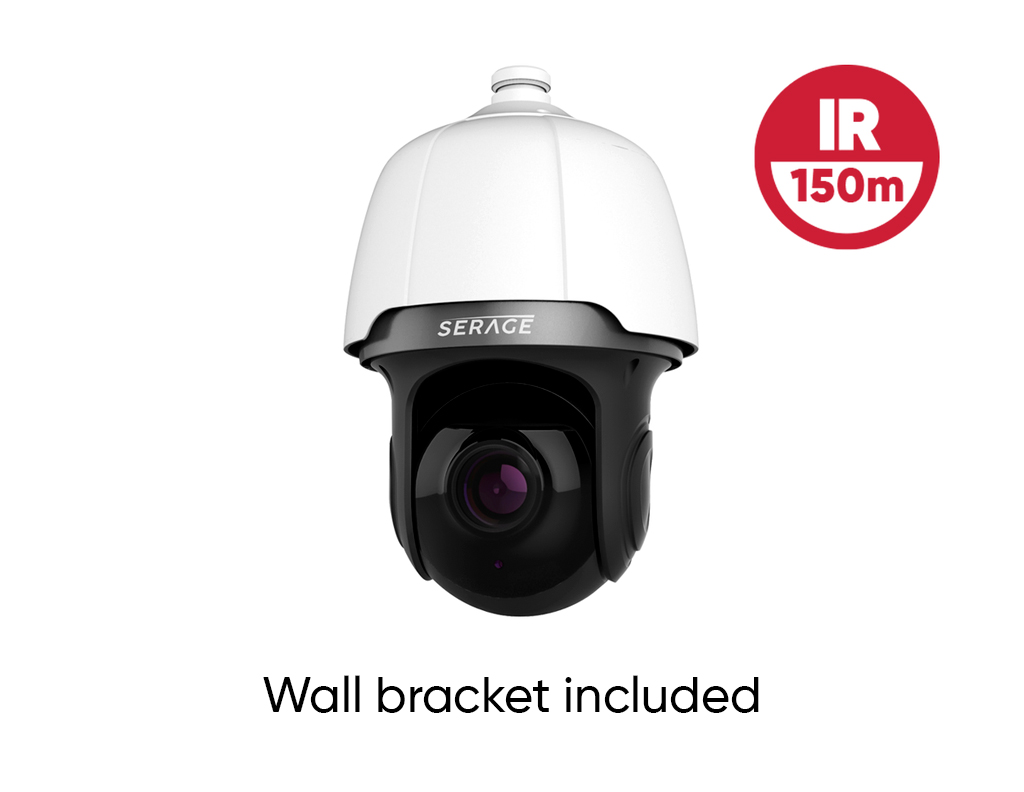

SRSP5M/33 - Serage 5mp Speed Dome Camera

SRSP5M/33

https://www.gtecsecurity.co.uk/web/image/product.template/13235/image_1920?unique=2c36b22

This combination does not exist.

Contact Us

Terms and Conditions

  • Image Sensor -  1/2.7" 5MP
  • Max. Resolution  - 2592(H)×1944(V)
  • Min. Illumination -  AGC On: Color: 0.5 lux, B/W : 0.05 lux, 0 lux with IR
  • Focal Length - 4.3-141.9mm
  • IR Distance - 150m IR
  • Aperture Range -  F1.6-F4.3
  • Optical Zoom - ×33
  • Zoom Speed - ＜6s（Optical,wide to tele)
  • Movement Range(Pan)  - 360°endless
  • Video Compression - H.264&H.265
  • Water Proof - IP66
  • SD Record - Max. 128G
  • Power Supply - AC24/DC12V/POE+
  • Working Temperature - -30℃~+60℃
  • Dimension - 333.4*206.44*351.82/mm
Model SRSP5M33
Image Sensor 1/2.7"  5MP
Max. Image Resolution 2592(H)×1944(V)
Shutter Time 1/5 ~ 1/20000s
Min. Illumination AGC On: Color: 0.5 lux, B/W : 0.05 lux, 0 lux with IR
IR Leds 10（4+6）
Focal Length 4.3-141.9mm
IR Distance 150m
Aperture Range F1.6-F4.3
Horizontal Field of View H：59（W）-2.4（T）
Optical Time ×33
Focus Mode Auto/Semiauto/Manual
Zoom Speed ＜6s（Optical,wide to tele）
Movement Range(Pan) 360°endless
Movement Range(Tilt) -10°~90° (Auto Flip )
Preset Speed 200°
Preset Positions 255c
Pan Speed 0.6°~200°/S
Tilt Speed 0.6°~100°/S
Watch Points 255
Auto Cruise 1
Tour 4
Line scan 1
Pattern scan 4
Protocols PTZ_PELCO_D，PTZ_PELCO_P
Video Compression H.264&H.265
Day & Night Auto/Color/B&W/Schedule
Exposure Mode Auto/Manual/Shutter First/Iris First
BLC Support
WDR Support
HLC Support
White Balance Auto/Manual/Outdoor
AGC Support
Noise 2D&3D
Brightness Support
Contrast Support
Saturation Support
3D Zoom In Support
Intelligent PID/LCD/SOD/PD&VD/FD/CC/SOD
ROI Support
Smart Defog Support
Digital Zoom Support
Privacy Zone Cover Support
Audio Compression G.711alaw/G.711ulaw/G726.16K/AAC
API Interface Support
Network Interface 10/100Mbps ethernet interface
Network Protocols TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Online User 5
Browser IE8 above
Audio Input 1 Line-in
Audio Output 1 Line-out
Alarm Input 1 Input
Alarm Output 1 Output
CVBS Support
SD Record Max. 128G
RS485 1
Power Supply AC24/DC12V/POE+
Working Humidity < 90%(outdoor)
Working Temperature -30℃~+60℃
Water Proof IP66
Dimension 333.4*206.44*351.82/mm
